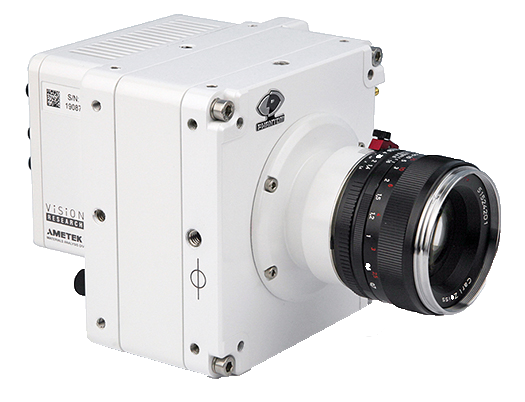

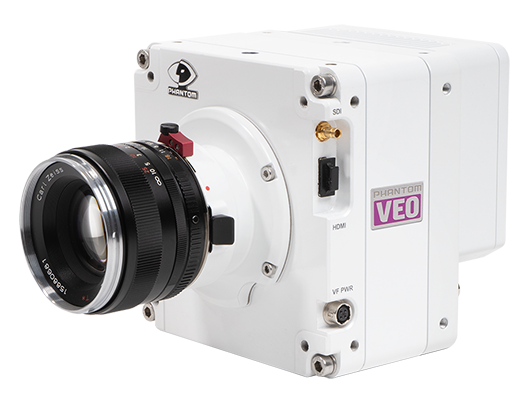

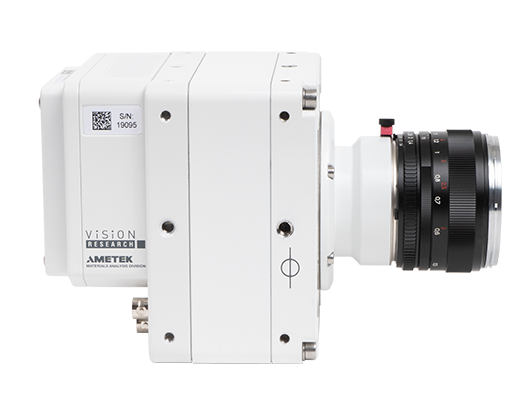

Phantom VEO® high-speed cameras are compact, robust and packed with numerous functions for a wide range of imaging applications.
The VEO 1310 is the fastest and most compact camera in its performance class and has a 1.2 megapixel sensor with a throughput of over 13 gigapixels / second (Gpx / s). This enables the recording of up to 10,860 frames per second (fps) with a resolution of 1280 x 960 or over 14,300 fps with 1 MP resolution. The maximum speed at reduced resolution is 423,350 fps. The new sensor is 2.5 times more sensitive to light than the VEO models X10. The switchable binning mode (combining 4 pixel cells) allows the sensitivity to light to be increased significantly and the exposure frequency to be partially doubled. With the optionally available 10Gb Ethernet interface, 72GB of data can be transferred to the PC in less than two minutes.

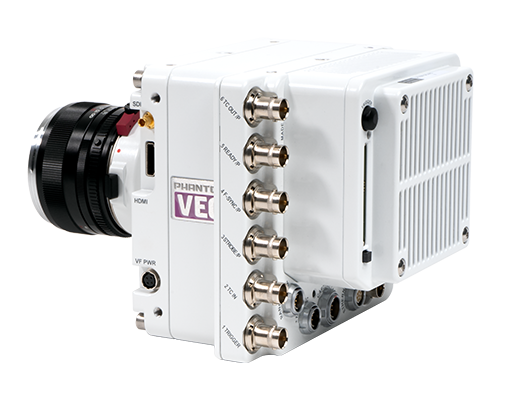

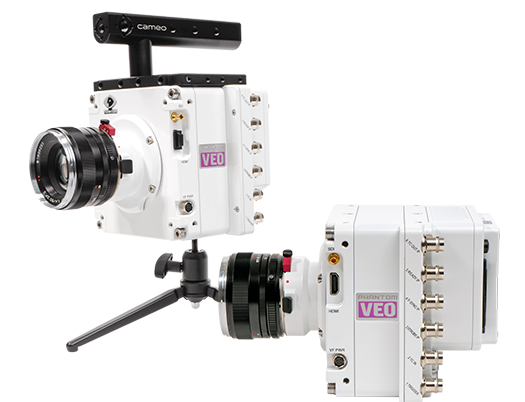

All Phantom VEO camera models are available in the housing versions L and S. The L-model contains everything that is required for software-based detection and motion analysis. The S model offers additional signal availability, on-camera controls, robust connectors and compatibility with removable CFast 2.0 storage media. Both models have 3G HD-SDI and HDMI outputs and our new versatile programmable I / O infrastructure.
