Phantom VEO 1010

Main Features

  • CMOS Sensor
  • 280 x 960 Pixel @ 8.420 fps
  • 280 x 720 Pixel @ 11.140 fps
  • Speed: 328.460 fps
  • Elektronical shutter up to 1,0 μs
  • Memory 18 GB (36 GB / 72 GB optional)
  • 10 Gigabit Ethernet (optional)
  • Dynamic: 12 Bit
  • Light sensitivity Mono / Color: 25.000 / 6.400 ISO
  • Power consumption: 80 Watt
  • Lens mount: Canon EOS Lens Mount, PL Mount, C- Mount
  • Size: 127 x 127 x 127 mm
  • Weight: 2,7 kg (3,0 kg S-Modell)
  • Shock: 30G with shutter; 100G without shutter;
  • Vibration: 12 Grms

Phantom VEO® high-speed cameras are rugged, compact, and packed with features for a wide variety of applications.

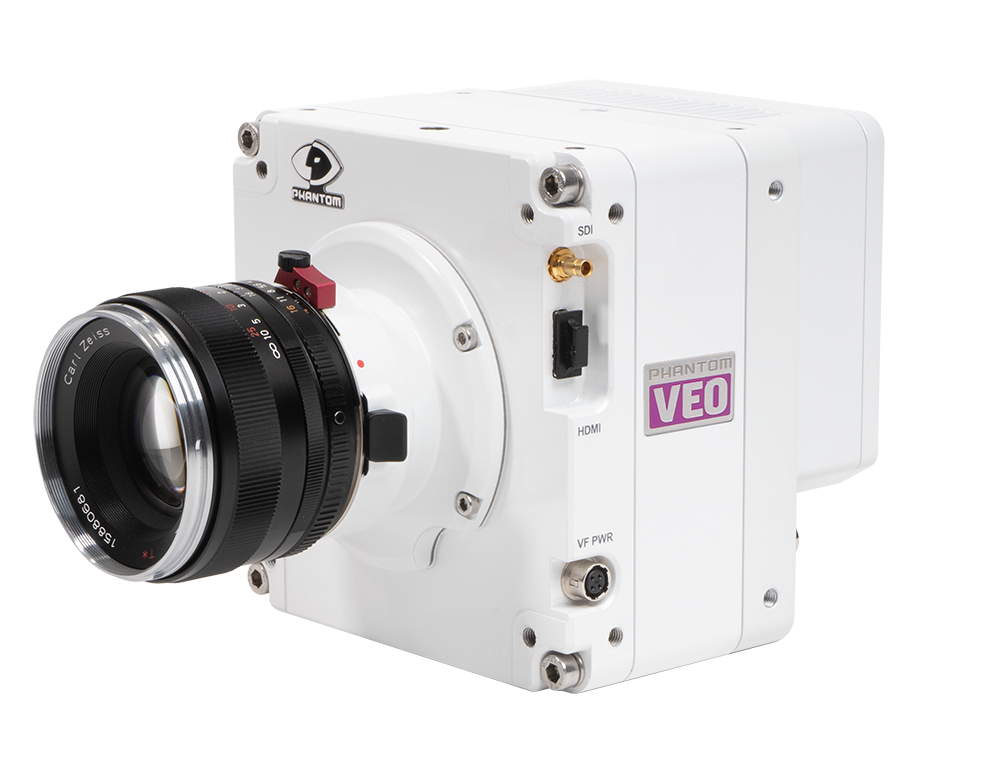

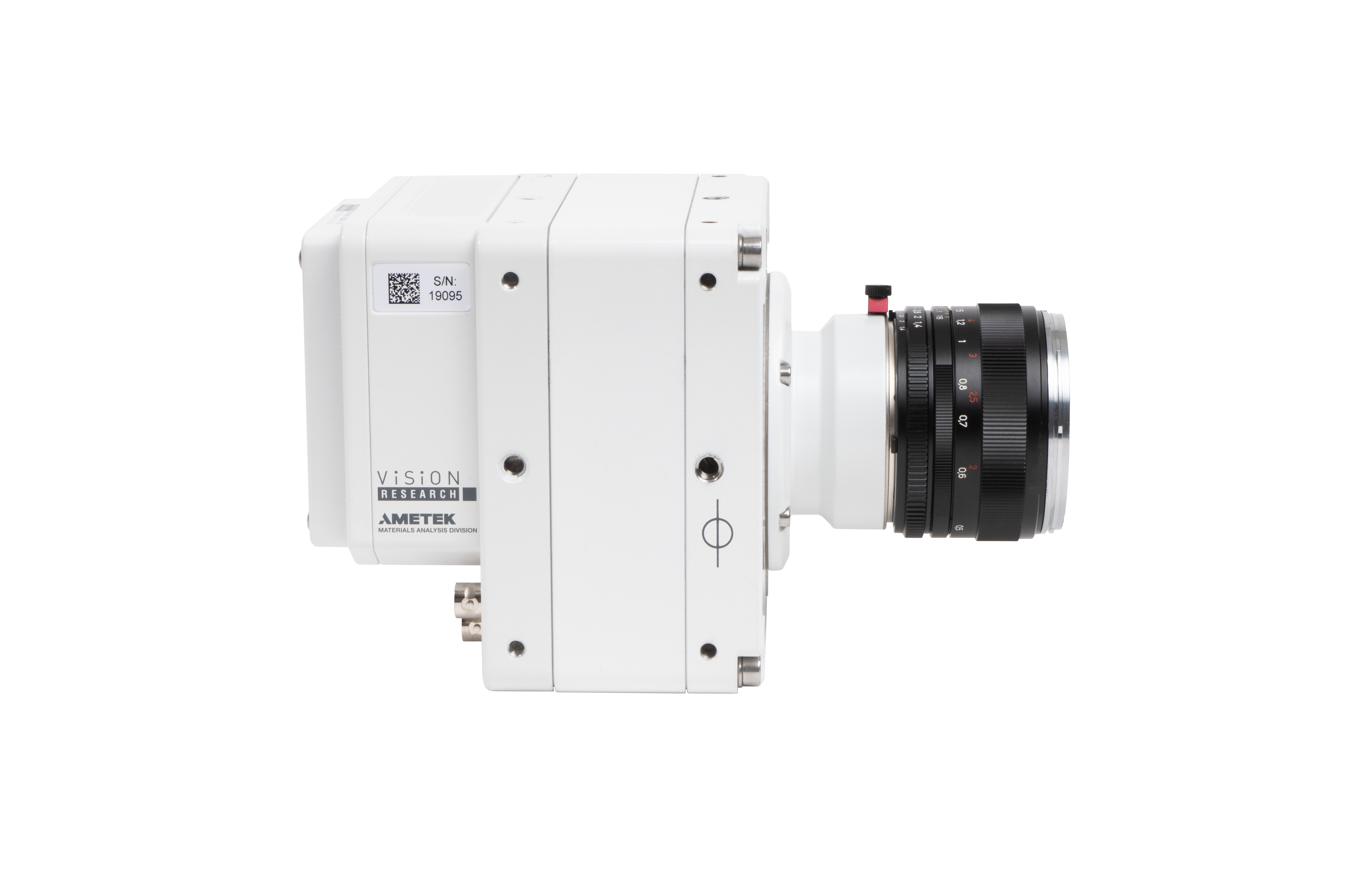

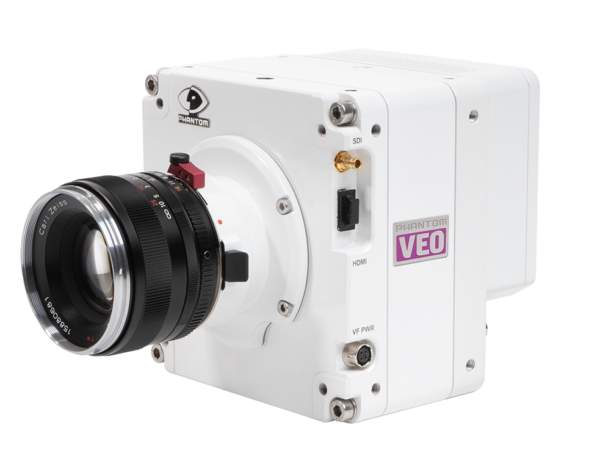

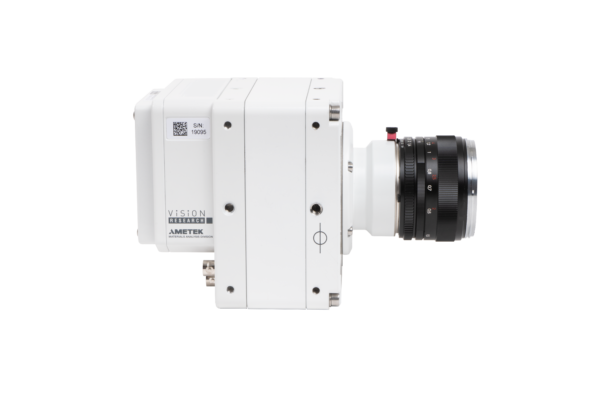

The Phantom VEO 1010 is the most light-sensitive VEO slow motion camera and takes pictures with up to 10 Gpx / s.

The VEO 1010 high speed camera records over 8,420 images per second at a resolution of 1.2 Mpx. The maximum speed with reduced resolution is 423,350 fps. The switchable binning mode (grouping of 4 pixel cells) can significantly increase the light sensitivity and partially double the recording frequency. With the optionally available 10Gb Ethernet interface, 72GB data can be transferred to the PC in less than two minutes.

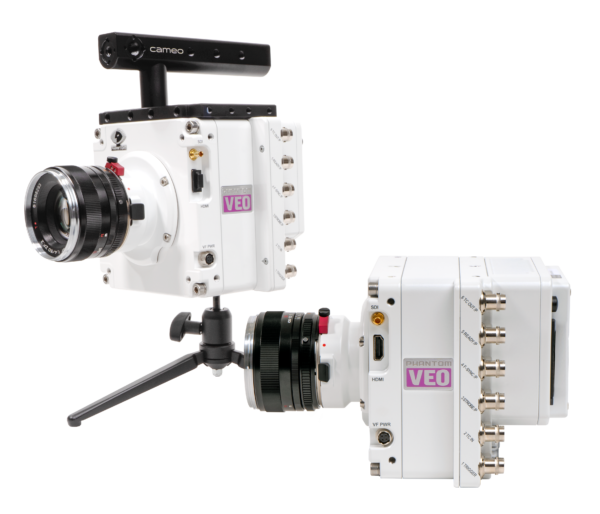

All Phantom VEO camera models are available in the housing variants L and S. The L-model contains everything that is needed for software-based acquisition and motion analysis. The S-Model offers additional programmable signal inputs and outputs, direct camera controls, robust connectors and compatibility with removable CFast 2.0 storage media. Both models have 3G HD-SDI and HDMI outputs and a new versatile programmable I / O infrastructure.
