Phantom v2640

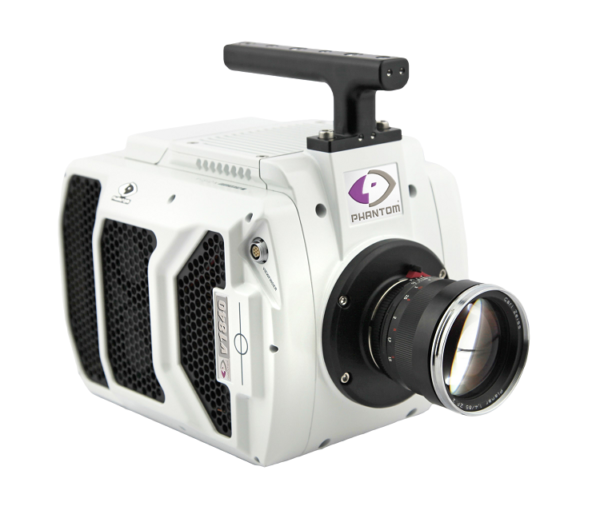

Phantom v1840

Main Features

  • Ultra Fast CMOS Sensor
  • 048 x 1.952 Pixel @ 4.510 fps
  • 920 x 1.080 Pixel @ 8.750 fps
  • 512 x 512 Pixel @ 18.600 fps
  • Speed: 233.380 fps
  • Electonical shutter up to 1,0 μs (499 ns option)
  • Memory 72 GB (144 GB / 288 GB optional)
  • 10 Gigabit Ethernet
  • Dynamik: 12 Bit
  • Light sensitifity mono/ color: 000 / 3.200
  • Power consumption: 280 Watt max.
  • Lens mount: Nikon F-Mount, Canon EF Mount, C-Mount, PL Mount
  • Size: 280 x 190 x 190 mm
  • Weight: 8,1 kg

The Phantom v1840 offers an outstanding image quality and reaches up to 18 Gpx / sec.

Exceptional image quality:

The clean and extremely detailed image is the result of minimal readout noise and a very high dynamic range. Low noise ensures a clean image, especially in dark or hard-to-see areas. The high dynamic range shows the details in the shades of an image, especially in high-contrast scenarios. The v1840 has both the lowest noise floor of any phantom camera and the highest dynamic range.

Exceptional speed:

With 18Gpx / s, the v1840 offers up to 4,510 frames per second (fps) at full resolution of 4 Mpx and up to 8,750 fps at 1920 x 1080.

Exceptional flexibility:

The v1840 offers up to 4 operating modes and therefore maximum flexibility. The standard mode with Correlated Double Sampling ensures unprecedented image quality, while the high-speed mode (HS) allows up to 34% more throughput. Monochrome cameras also have binning modes for increased throughput and sensitivity.
