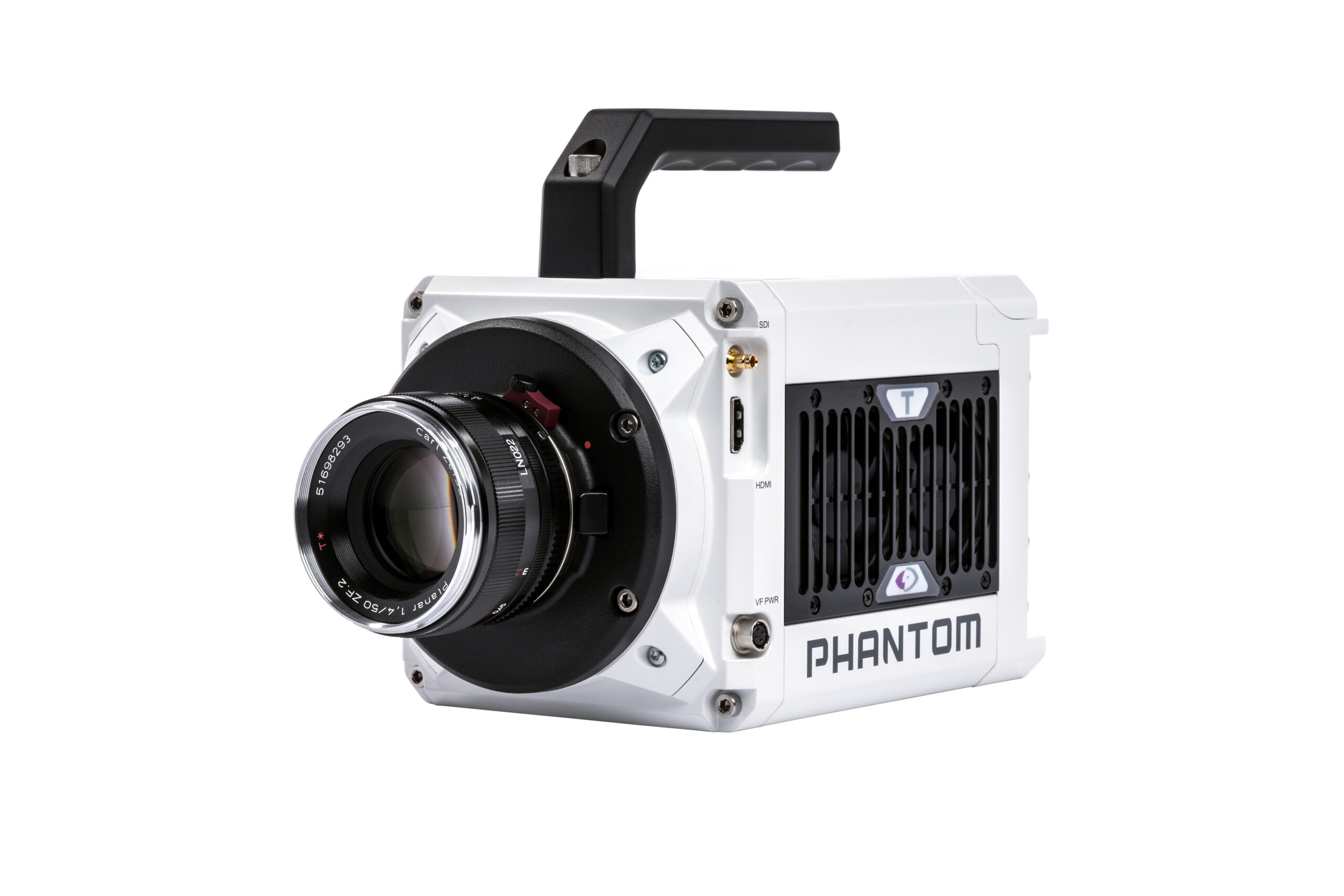

Phantom T4040

Main Features

Back Illuminated CMOS Sensor
2.560 x 1.664 Pixel @ 9.350 fps
1.536 x 768 Pixel @ 20.250 fps
512 x 64 Pixel @ 444.440 fps (Binned Mode)
Max. Speed: 444.440 fps
Electronical shutter up to 1,0 μs (225ns Fast mode Option)
Memory 64 GB (128 GB / 256 GB optional)
10 Gigabit Ethernet
Dynamic: 12 Bit mono, 36 Bit color
Light sensitivity Mono / Color: 12.500 / 3.200 ISO
Power consumption: 280 Watt max.
Lens mount: Canon EOS Lens Mount, PL Mount, C- Mount
Size: 127 x 127 x 210 mm
Weight: 4,3 kg
Shock: 30G with shutter
Vibration: 12 Grms

The Phantom T4040 is the world’s fastest 4.2 Mpx Ultra High Speed camera with over 9,300 fps at a resolution of 2,560 x 1,664 pixels and up to 444,000 fps at reduced resolution. The camera delivers a consistent performance of 39.8 Gpx/s and the new, back-illuminated sensor with a fill factor of almost 100% guarantees the highest light sensitivity. The extremely compact design and outstanding signal/noise ratio are perfect for light-critical industrial and scientific applications.
